Indian Residential Floor Plan Dataset

Overview

What this dataset is

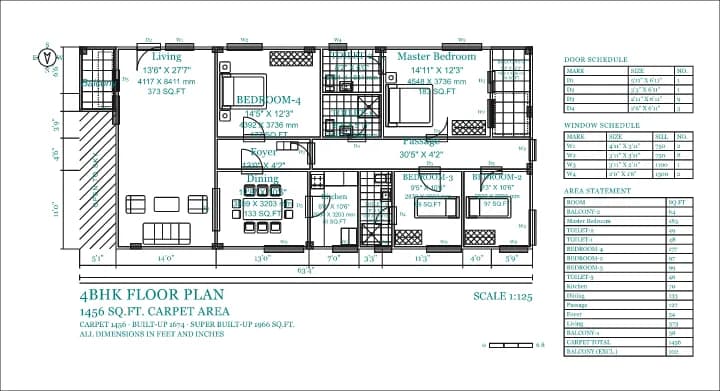

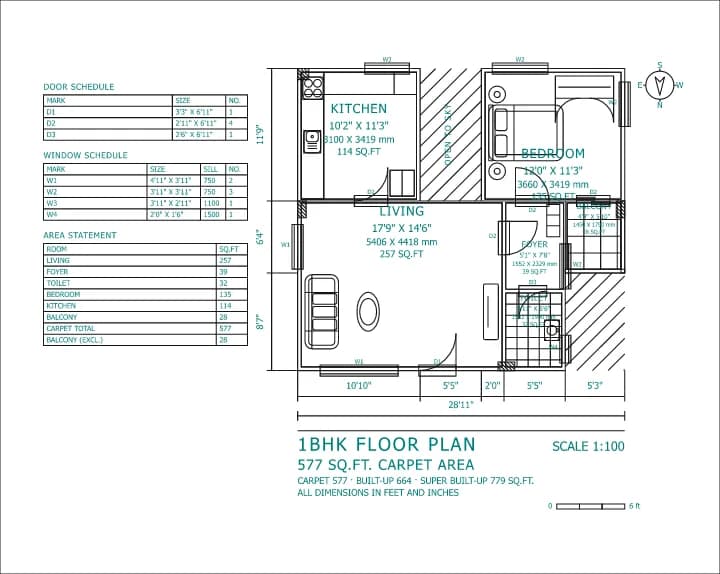

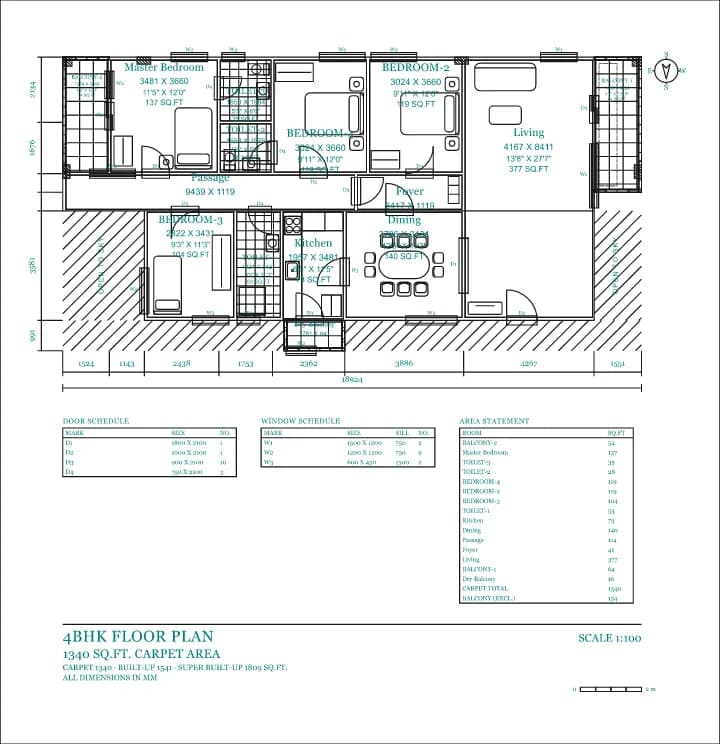

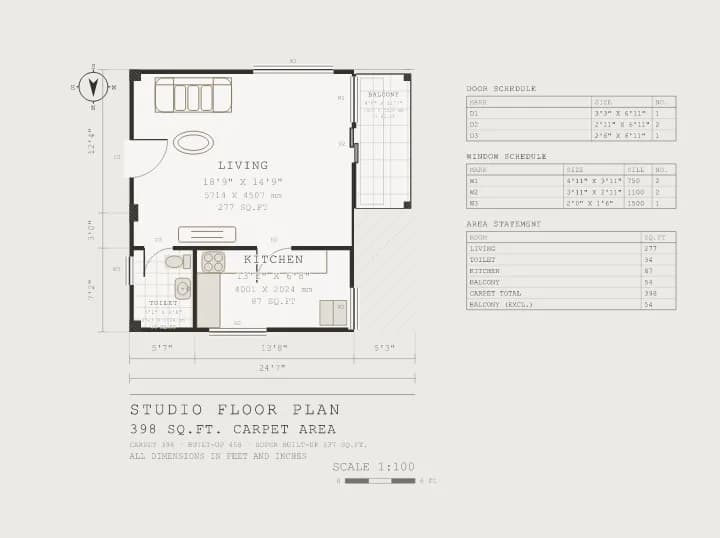

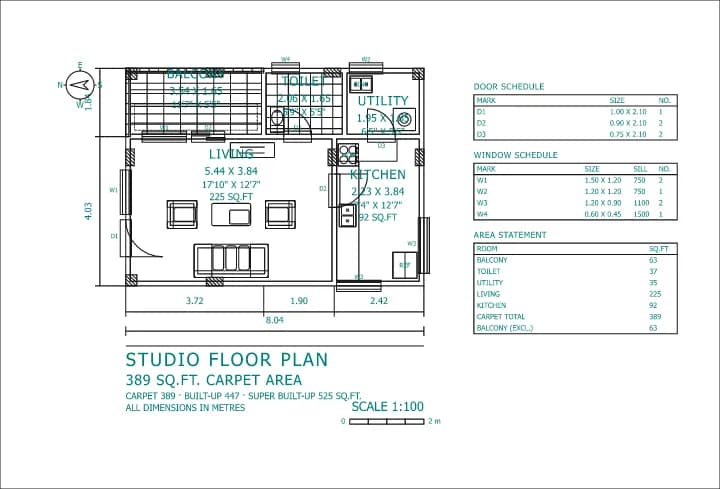

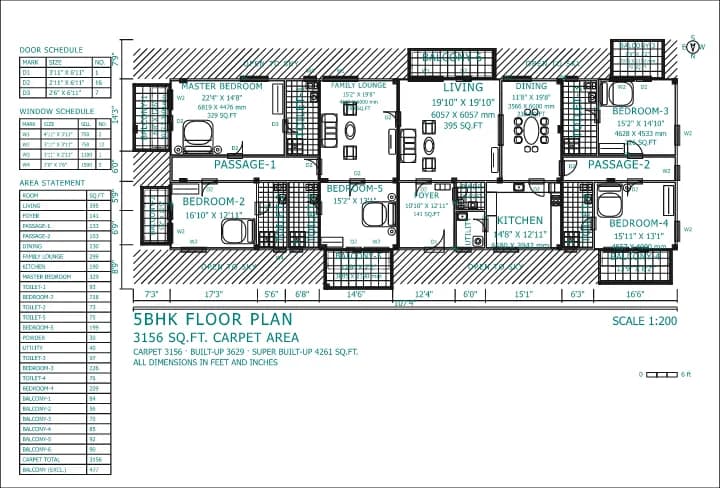

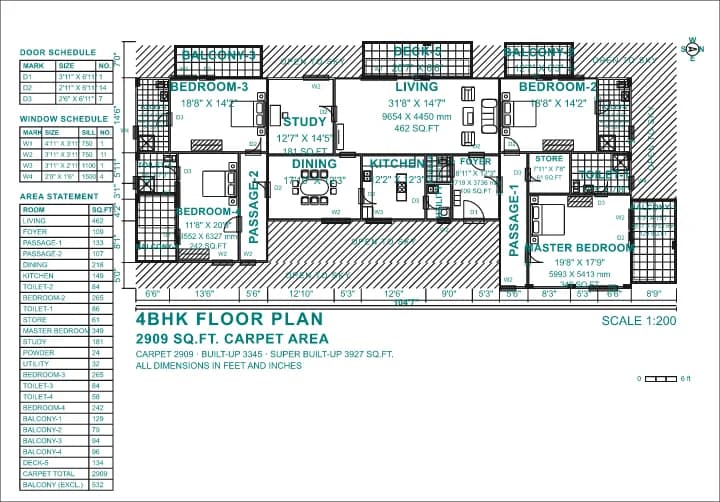

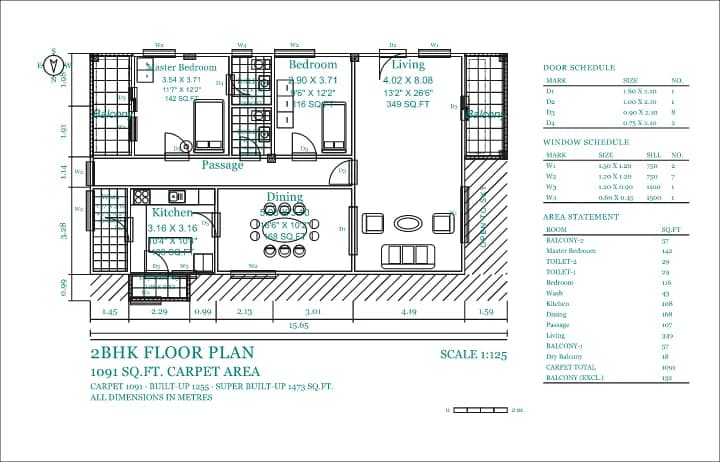

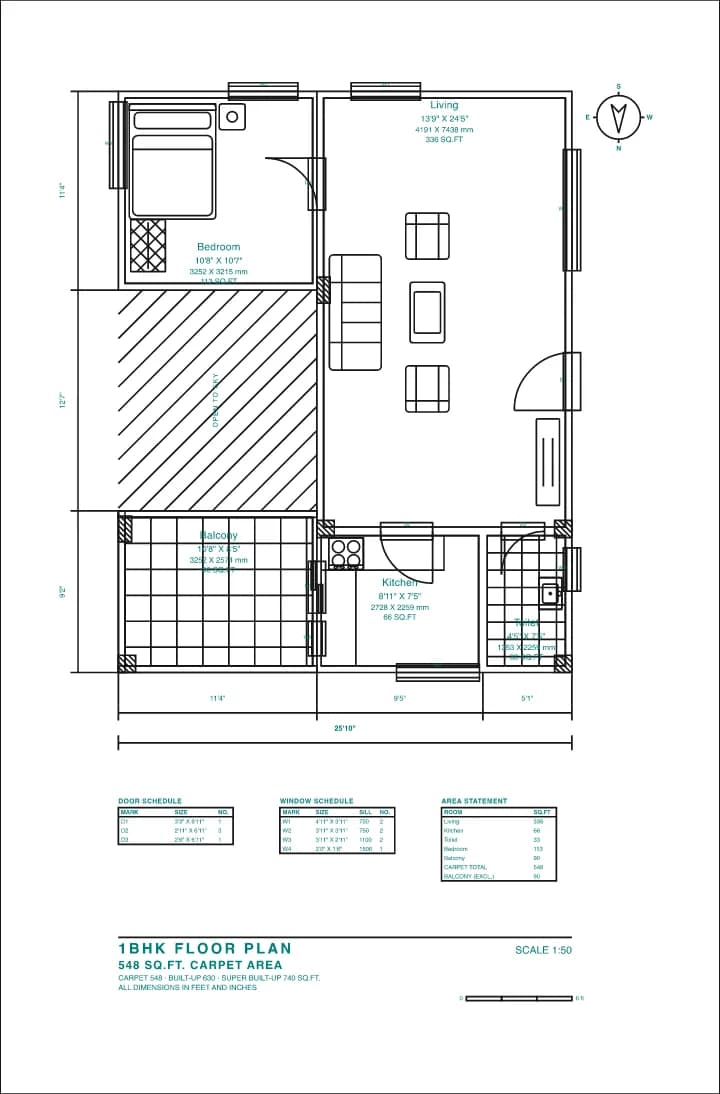

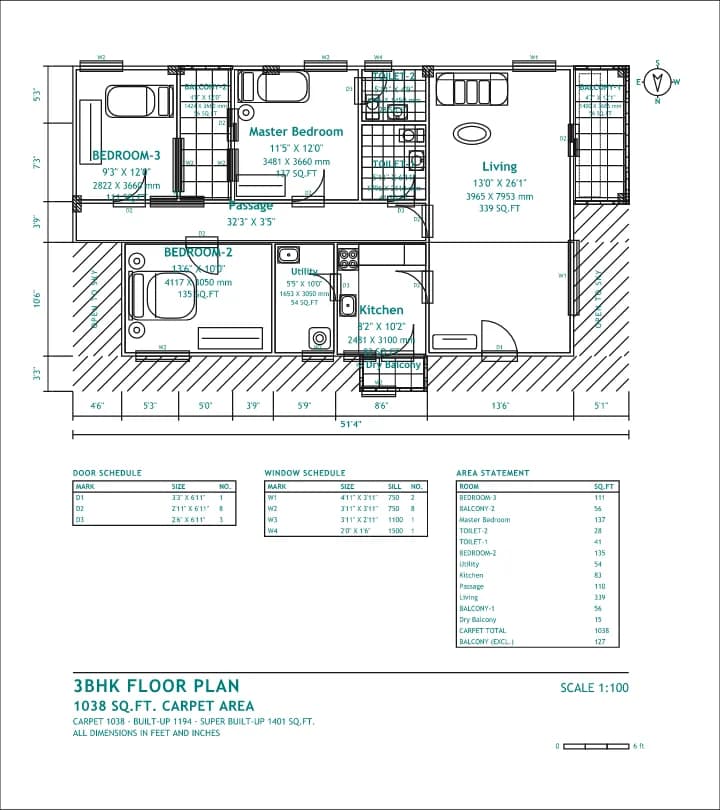

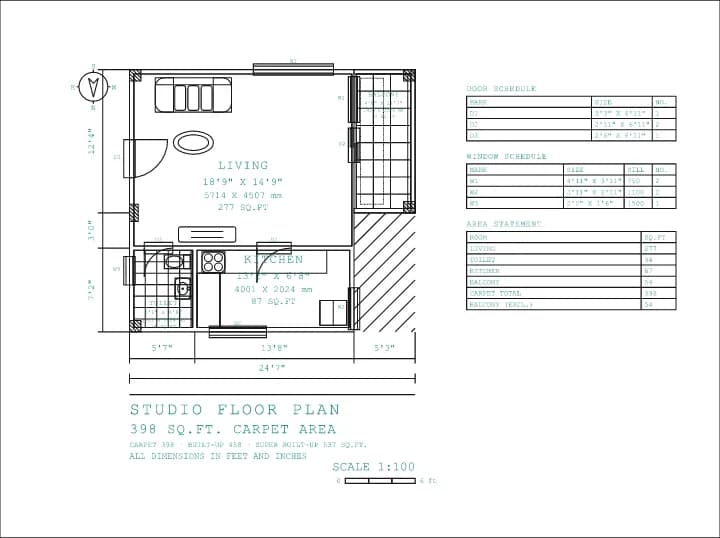

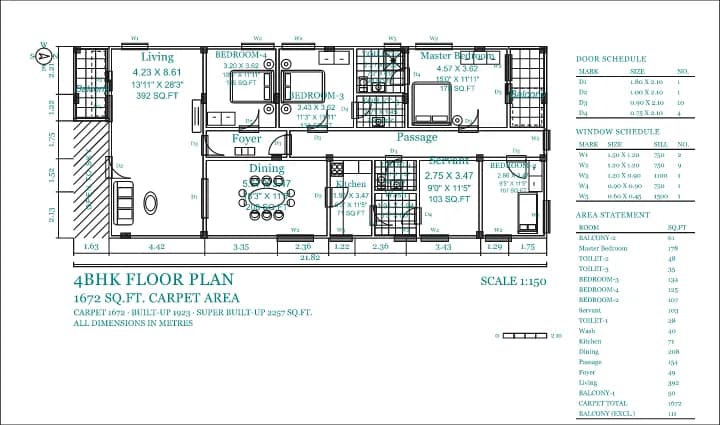

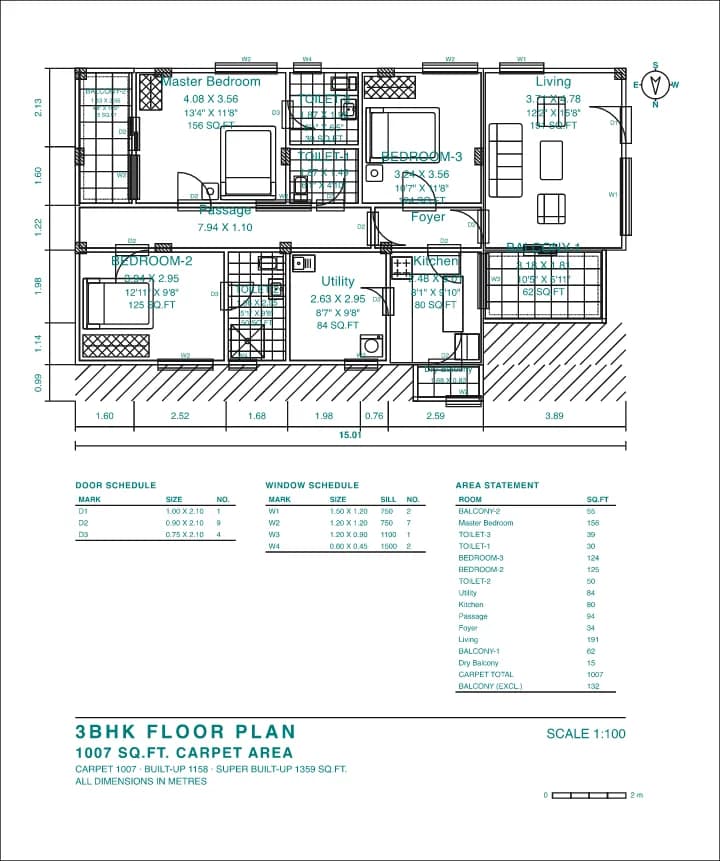

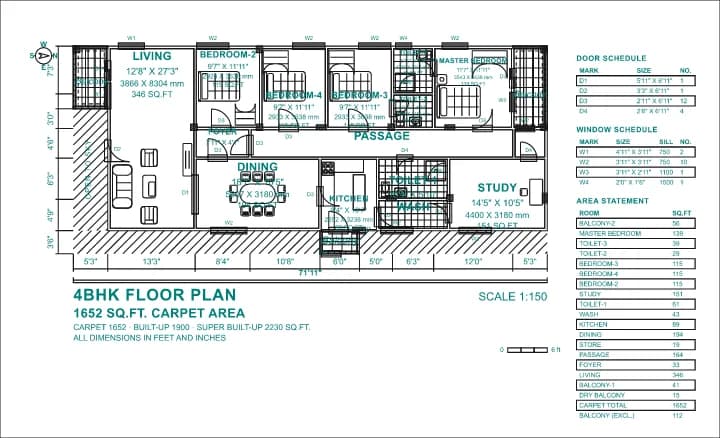

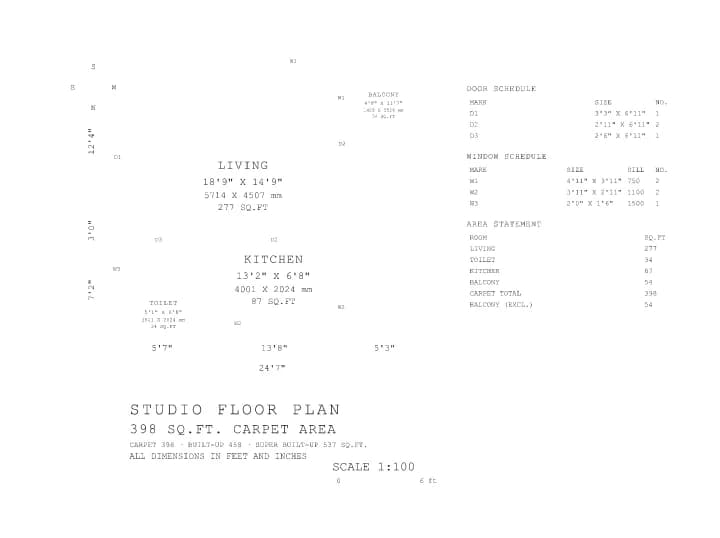

• Vector walls and openings
• Live room labels and dimensions
• Door and window schedules
• Layer groups
• Geometry JSON per plan

AI use cases

• Floor-plan generation
• Spatial reasoning
• CAD understanding
• Layout optimisation
• Architecture AI
• Evaluation

Specifications

Dataset specification

Format, DOM node types, interleaved text and graphics, and the content rules (no brands or trademarks, no personally identifiable information) are stated for every dataset on the specifications page.

Production lines

Taxonomy coverage

Unit types

6 (studio to 5 BHK)

Footprints (standard line)

6 (L 209,210 · T 65,526 · rect 18,373 · stepped 4,001 · U 1,521 · notched 1,369)

Circulation types (standard line)

6 (corridor spine 271,893 · open plan 17,112 · central lobby 6,975 · foyer hub 2,012 · side lobby 1,853 · short corridor 155)

Orientation (standard line)

W 105,384 · S 97,034 · N 78,549 · E 19,033

Vastu aligned (standard line)

66,900 plans, 22.3% of that line

Toilets per plan (standard line)

1: 19,219 · 2: 201,770 · 3: 69,500 · 4: 9,511

Schema

Per-asset record

Parquet, mirroring the field conventions of MMSVG-2M and Hugging Face datasets so existing loaders work unchanged. The texts[] and layout[] arrays are not offered by any public SVG dataset.

asset_id, dataset_id, dataset_version, line, file_path, sha256
svg_raw
svg_normalized       fixed viewBox, transforms baked, CSS inlined, M/L/C/Q/A/Z only
png_448, width, height, orientation, page_format
text_count, path_count, group_count, image_count, element_count, token_len, complexity_tier
texts[]              {content, role, font_family, font_weight, font_size, bbox, script}
layout[]             {element_id, type, bbox, z_order, parent_group}
palette_id, colours[], is_dark, font_ids[], font_licences[]
sector, subject, industry, geography, tags[], headline
caption_short, caption_medium, caption_detailed
provenance           {template_id, illustration_source_url, illustration_licence, generator, generated_at}
quality              {valid_svg, renders, has_live_text, has_raster, near_dup_group, phash}
